Oil Drain Hose Assemblies

In order to use the TT-28 or OD-28 to change engine oil every piece of equipment must be equipped with a hose assembly. These hose assemblies allow the end user to cut to exact length and run the hose to a proper location that is easily accessible. The coupler is then mounted using the appropriate a straight or angled bracket in the engine compartment that allows easy access and hookup to the TT-28 or OD-28, and thus eliminates the need for the service technician to go under the vehicle and remove a drain plug. (see appendix 6 for brochure)

SE Drain Hose Assembly
SHA Drain Hose Assembly
JHA Drain Hose Assembly

Installation of an SHA Hose Assembly installed on a Mack Truck at Rockydale Quarries Truck Maintenance Facility in Roanoke, VA.

SE Drain Hose Assembly

Detailed Information (PDF)

The SE Series Drain Hose Assembly Kits Include:

The SE Series engine oil pan drain hose assemblies were developed to meet the needs of smaller engine driven equipment such as forklifts, mowing machines, airport ground support equipment, pony engines and similar sized applications.

The SE Hose consists of a 1/2â€³ SAE 100 R1 hose of four (4) foot length (these can be furnished longer or shorter as needed) with a allow steel banjo and stainless binding ferrule.
A Banjo Kit (BBK) that includes an alloy steel banjo bolt of the specified oil pan thread, a matching spacer, two banjo seals and a oil pan gasket
An upper hose connector nipple assembly with stainless steel ferrule and a reusable screw in nipple threaded for a coupling, such as an ISO type B as shown. Other couplings are available, such as a Mercedes type socket, a miniature ball valve or plain hex seal caps.

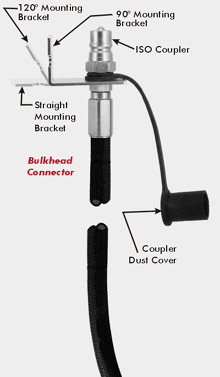

Connector Mounting Brackets and Covers are optional accessories on this Series and must be ordered separately. CAP stocks all type of these accessories.

NOTE: CAP drain hose assemblies and accessories are intended for oil pan drain purposes. Please consult CAP about any other intended uses.

SHA Drain Hose Assembly

Detailed Information (PDF)

The SHA Series Drain Hose Assembly Kits Include:
The SHA Hose Assembly (72â€ long) with a Banjo connection crimped on one end. The opposite end is blank to allow cutting of exact length at assembly.

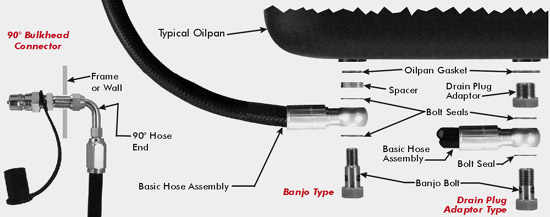

The Oil Pan Banjo Bolt Set which includes a Banjo Bolt, two (2) Seals, a Spacer and an Oilpan Gasket.

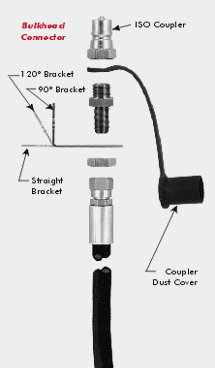

A Reusable Upper Hose End Kit for the service connection end which comes complete with an ISO Coupler (Part # DA051), Coupler Dust Cover (Part # DA058), and Hose End (Part # HF107).

The oil resistant drain hose which is reinforced with a high tensile steel braid and has a temperature rating that exceeds 225Â° F. This material exceeds SAE 100R1, has a minimum bend radius of 3-1/2 inches and a working pressure rating in excess of 2000psi. All Banjo fitting assemblies are pressure tested by CAP at 500 psi during final assembly.

NOTE: CAP drain hose assemblies and components are intended only for oilpan drain purposes. Please consult factory about any other intended uses.

The Connector Mounting Bracket is not included because of the many possible variations. Please specify this from parts listing on the back page.

RECOMMENDED INSTALLATION PROCEDURE
For SHA Hose Assembly
All Drain Hose Assemblies, Banjo Bolts and other fittings are intended to be installed by professional mechanics using state-of-the-art professional tools in good condition. Creative Automotive Products has attempted to be helpful by publishing or distributing technical bulletins that will assist the professional. Your questions, comments and recommendations are always welcome. Please contact us by phone at (800) 387-4973 or e-mail us at sales@oilchangesystems.com

STEP 1: Select the desired location for the upper mounting bracket and coupling.

STEP 3: After ascertaining that the routing is appropriate, mount Coupling Mounting Bracket to vehicle.

STEP 4: Assemble Banjo Bolt, without Seals, Spacer and Oilpan Gasket. Hand tighten bolt only.

STEP 5: Run blank end of hose to Mounting Bracket and mark (or measure) for proper length. Please read Bulletin # TECH 99-2 "Hose Installation Considerationsâ€ and allow for flexing of hose during engine movement.

STEP 6: Cut hose to proper length. If hose cutting equipment is not available, a hacksaw is suitable. Do not use a shear or scissor type cutting device. (These types of cutting devices will deform the wire reinforcement in the hose wall.)

STEP 7: Install reusable hose end. See CAP Hose End Installation Techinal Bulletin # 99-1

STEP 8: Assemble hose fitting into Mounting Bracket and secure with ISO Coupler. Hand tighten only.

STEP 9: Route hose as previously planned and secure to oilpan with Banjo Bolt, Seals, Spacer and Oilpan Gasket. Carefully position as desired and tighten Banjo Bolt to specifications with torque wrench.

STEP 10: Remove Coupler from Mounting Bracket.

STEP 11: Install loop of coupler cover over thread. Replace thread back in Mounting Bracket.

STEP 12: Reattach ISO Coupler and tighten securely.

STEP 13: Refill with proper engine oil and check for leaks at engine operating temperature.

JHA Drain Hose Assembly

Detailed Information (PDF)

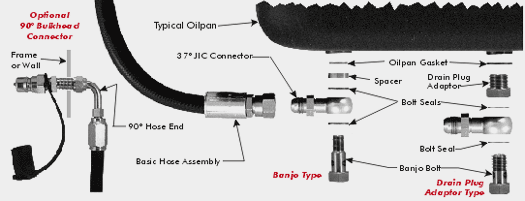

The JHA Hose Assembly has a JIC Joint with a 3/4-16 thread (1/2â€ tube size) installed near the Banjo Connector that allows opening of the line for manual draining without loosening the Banjo Connection bolt which has been torqued in place.

The Oil Pan Banjo Bolt Set which includes a Banjo Bolt, two (2) Seals, a Spacer and an Oilpan Gasket.

A Reusable Upper Hose End Kit for the service connection end which comes complete with an ISO Coupler (Part # DA051), Coupler Dust Cover (Part # DA058), and Hose End (Part # HF107).

NOTE: CAP drain hose assemblies and components are intended only for oilpan drain purposes. Please consult factory about any other intended uses.

The Connector Mounting Bracket is not included because of the many possible variations. Please specify this from parts listing on the back page.

All Drain Hose Assemblies, Banjo Bolts and other fittings are intended to be installed by professional mechanics using state-of-the-art professional tools in good condition. Creative Automotive Products has attempted to be helpful by publishing or distributing technical bulletins that will assist the professional. Your questions, comments and recommendations are always welcome. Please contact us by phone at (800) 387-4973 or e-mail us at sales@oilchangesystems.com

STEP 1: Select the desired location
for the upper mounting bracket and coupling.

STEP 2: Determine the hose route to the oil pan drain location. Be sure that the routing clears all exhaust pipes, manifolds and other HOT components by at least 4-5 inches and that the hose does not interfere with any steering linkages or other moving parts. Note: When installing JHA hose assemblies, be sure that the JIC joint is fully tightened before measuring or installing.

STEP 3: After ascertaining that the routing is appropriate, mount Coupling Mounting Bracket to vehicle.

STEP 4: Assemble Banjo Bolt, without Seals, Spacer and Oilpan
Gasket. Hand tighten bolt only.

STEP 7: Install reusable hose end. See CAP Hose End Installation Technical Bulletin # 99-1

STEP 8: Assemble hose fitting into Mounting Bracket and secure with ISO Coupler. Hand tighten only.

STEP 10: Remove Coupler from Mounting Bracket.

STEP 11: Install loop of Coupler cover over thread. Replace thread back in Mounting Bracket.

STEP 12: Reattach ISO Coupler and tighten securely.

STEP 13: Refill with proper engine oil and check for leaks at engine operating temperature.
